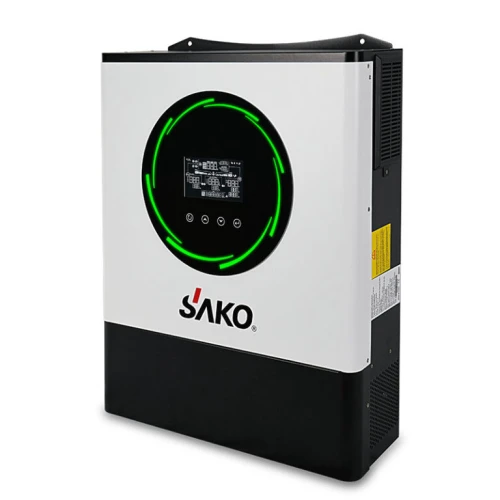

SAKO SUNPOLO 8.2KW Hybrid solar inverter
Features list
- 3 IN 1: MPPT INVERTER, ON GRID/OFF GRID/HYBRID.
- Communication optional: USB/RS232/RS485/Dry-Contact/WIFI
- Dual MPPT tracker inside (2pcs*18A), max PV input 8000W
- Real hybrid can feed-into grid
- Works with & without battery
- Parallel up to 6pcs optional
- Smart battery management, reserved communication port for BMS
- WIFI monitor optional
- Touchable LCD screen
| Parameters of the SUNPOLO 8KW Hybrid Solar Inverter | |
| Model No. | SUNPOLO 8.2KVA |
| Basical Information | |
| Max. PV Input Power | 8000W |
| Rated AC Output Power | 8000W |
| Grid-Tie Operation | |
| Nominal DC Volt / Max DC Voltage | 360VDC / 450VDC |
| Start-up Voltage / Initial Feeding Voltage | 120VDC |
| MPPT Voltage Range | 120-450VDC |
| No. of MPPT Tracker / Max. Input Current | 2PCS*18A MPPT Tracker (4000W*2) |
| AC Input (AC) | |
| AC Start-up Voltage / Auto Restart Voltage | 120Vac-140Vac / 180Vac |
| Acceptable Input Voltage Range | 90-280Vac or 170-280Vac |
| Max. AC Input Current | 63A |
| Grid Output in Grid-Tie/Hybrid Operation (AC) | |
| Nominal Output Voltage | 220Vac/230Vac/240Vac, Single Phase |
| Output Voltage Range | 184V-265Vac or 195-253V (Selectable) |
| Nominal Output Current | 34.8A |
| Power Factor | 1 |
| Max. Conversion Efficiency (DC/AC) | 96% |
| Battery Mode Output (AC) | |
| Nominal Output Voltage | 220Vac/230Vac/240Vac |
| Waveform | Pure sine wave |
| Efficiency (DC to AC) | 93% |
| Battery & Charger | |
| Battery Type Supported | Lead Acid / VRLA / AGM / Deep Cycle / Gel / Flooded / Tubular / Lithium-Ion |
| Nominal Battery Voltage | 48Vdc |
| Max Solar Charge Current | 120A |
| Max AC Charge Current | 120A |
| Max Total Charge Current | 120A |
| General – Physical | |
| Product Dimension (D x W x H) | 552 x 422 x 152 mm |
| Product Net Weight | 18.4 kg |
| Product Gross Weight | 20.5 kg |
| Packing Dimension (D x W x H) | 700 x 510 x 232 mm, 1PC/CTN |
| Parallel Functions Optional | Yes, optional, MAX. 6pcs |
| Communication Interface | RS232, USB, WIFI, TOUCH LCD |
| Environment | |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Operating Temperature | -10℃ to 50℃ |
| Storage Temperature | -15℃ to 60℃ |
